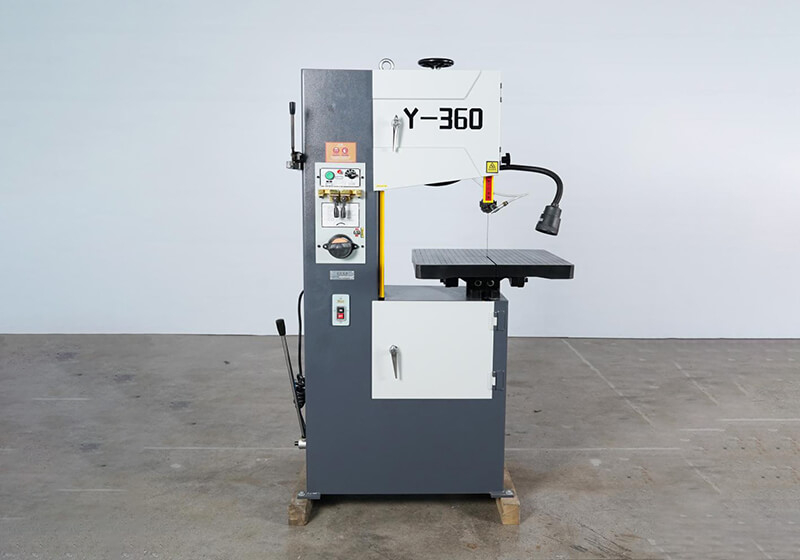

Y-360

Technical Data

Cutting capacity(mm)

Range 350mm

Workbench size（mm）

500×500

Maximum working height(mm)

230

Blade speed(m/min)

56/94/146/228

Blade size(mm)

2780×3~13

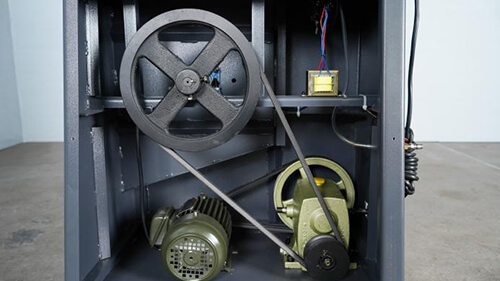

Main Motor(kw)

0.75

Workbench tilt angle(°)

front and back:10°

Left and right:15°

Work-piece Clamping

Hydraulic Vise

Blade Tension

manual

Material feed

manual

Machine size

900×660×1600

Machine weight

270kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

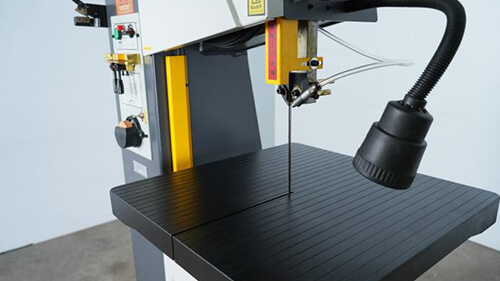

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Unit price FOB NINGBO(USD):

Option parts

1.Hydraulic blade tension :

1m Roller table :

Band saw blade:
