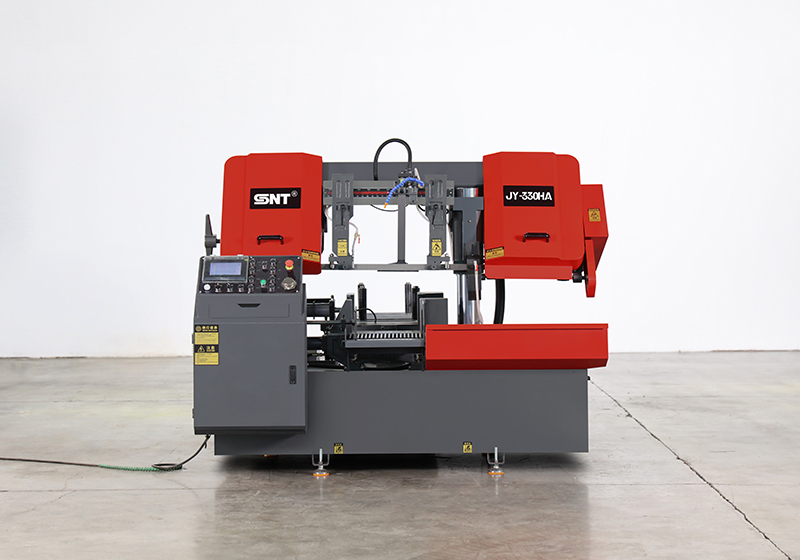

JY-350HA

Technical Data

Cutting capacity(mm)

350*350

Blade speed(m/min)

30/46/65/89

Blade size(mm)

34*1.1*4350

Main Motor(kw)

4

Hydraulic Motor(kw)

0.75

Cooling motor power(kw)

0.09

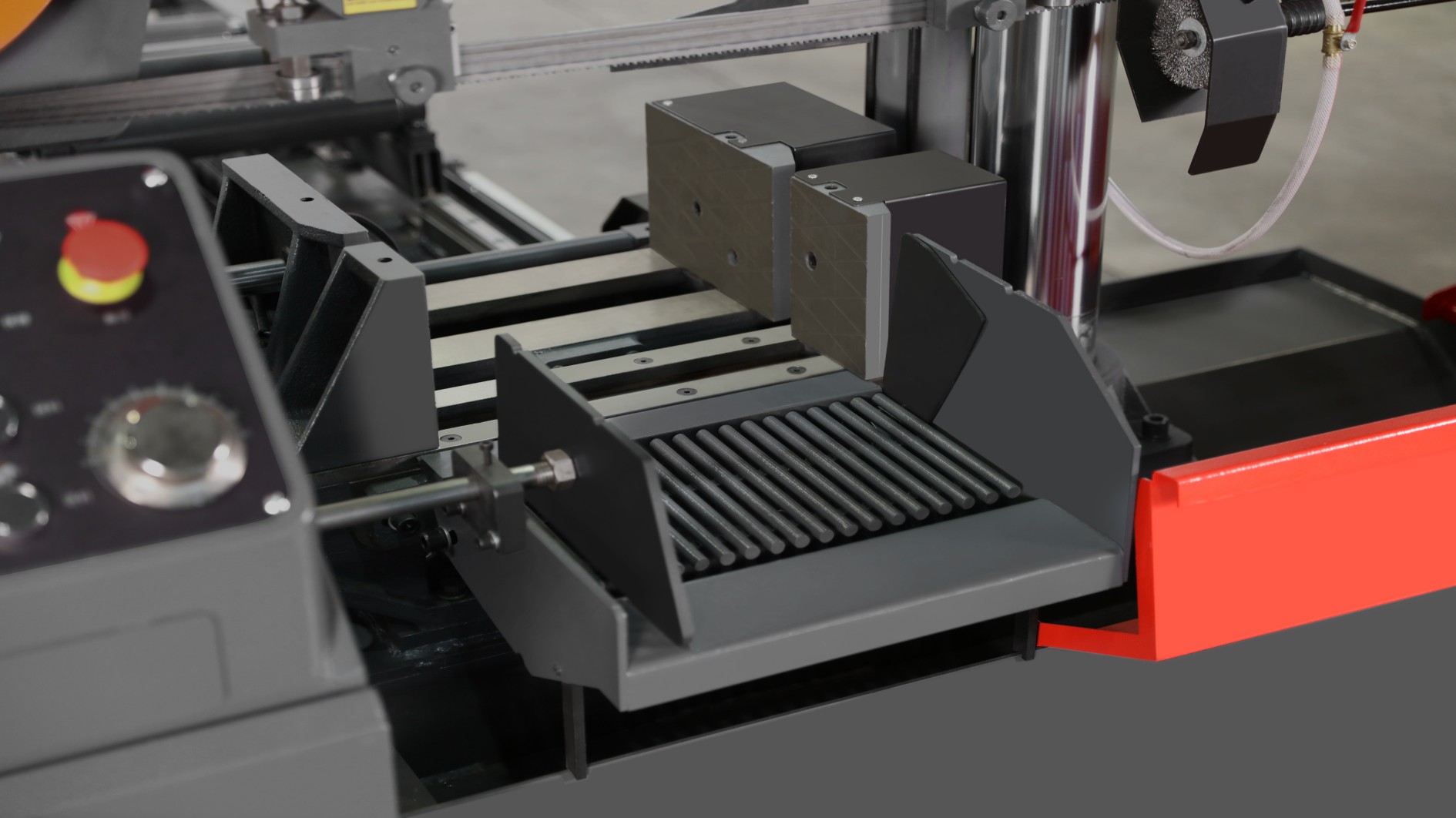

Work-piece Clamping

Hydraulic Vise

Blade Tension

Manual

Material feed

automatic

Machine size

2600*2100*1600

Machine weight

1700kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1. Roller table

2.Inverter speed
