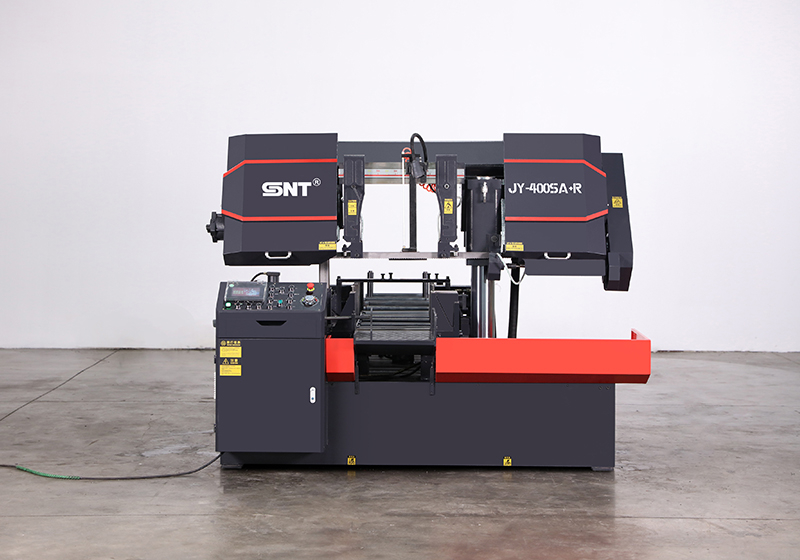

JY-400HA-R

Technical Data

Cutting capacity(mm)

400*400

Blade speed(m/min)

25/41/67/87/100

Blade size(mm)

41*1.3*4750

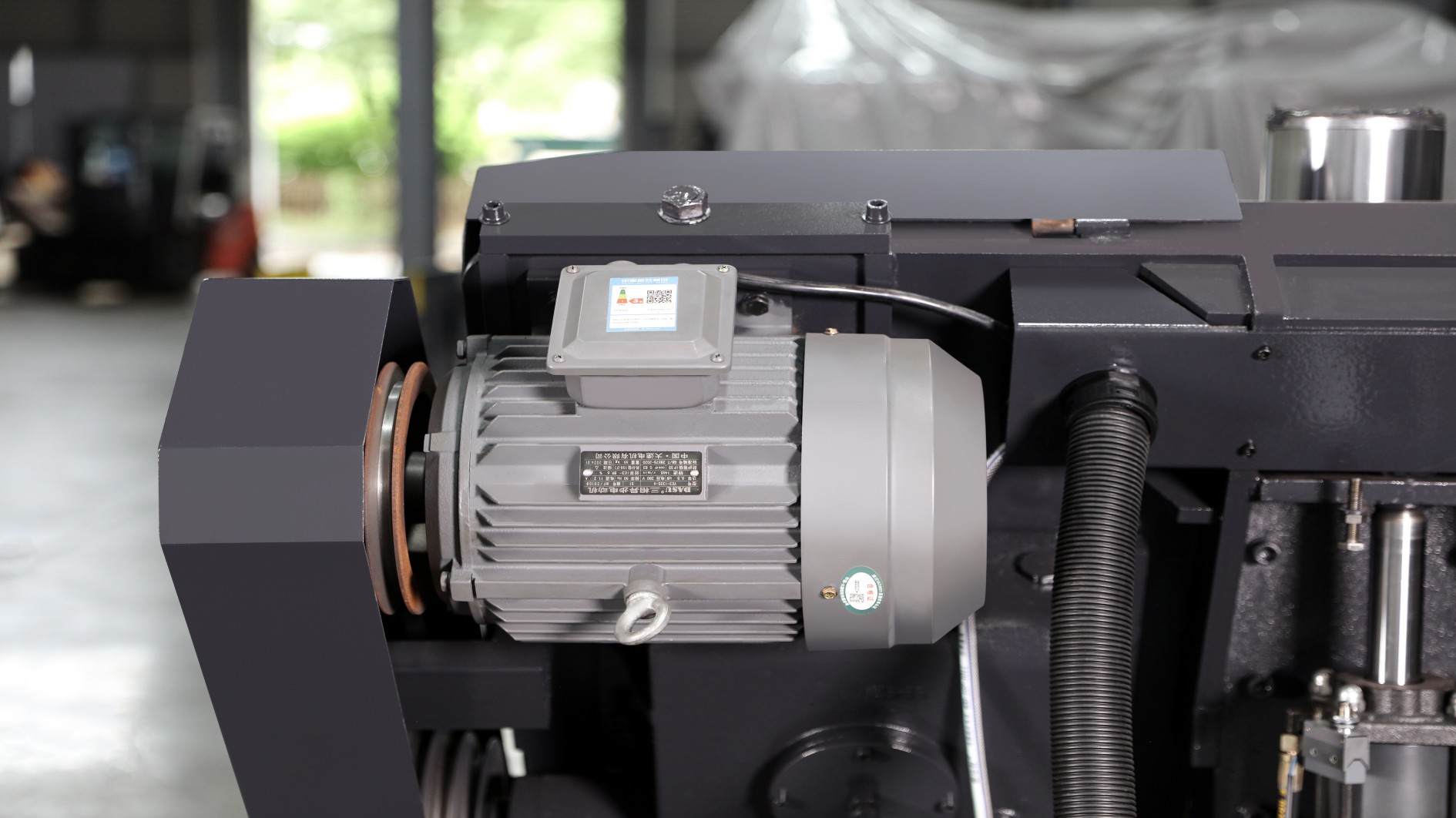

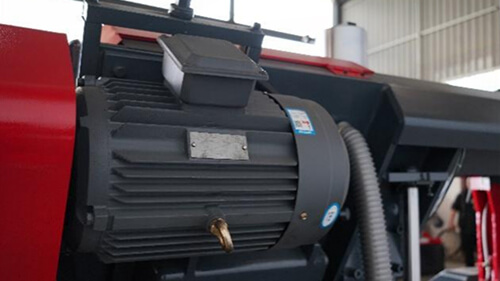

Main Motor(kw)

5.5

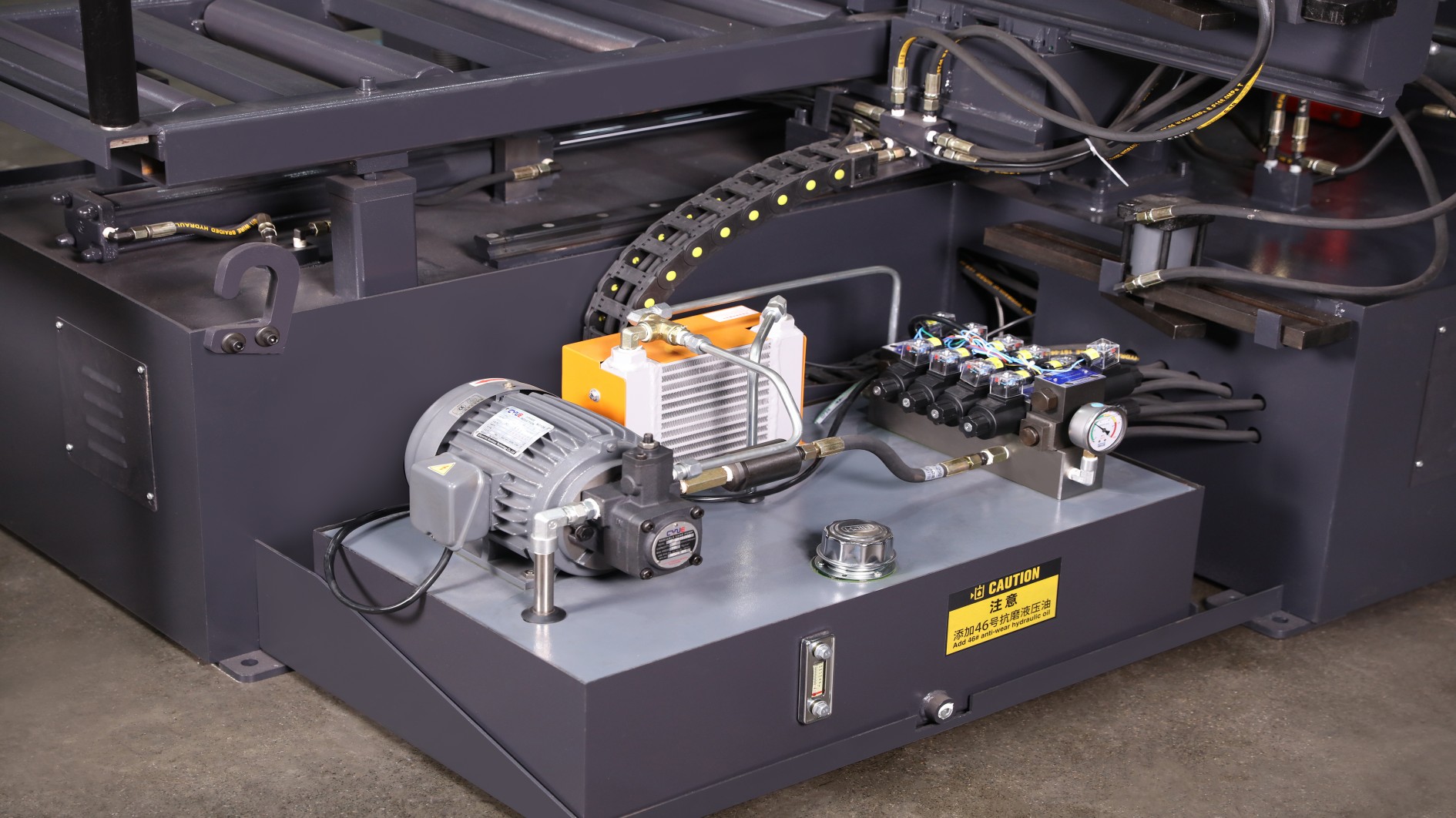

Hydraulic Motor(kw)

1.5

Cooling motor power(w)

90

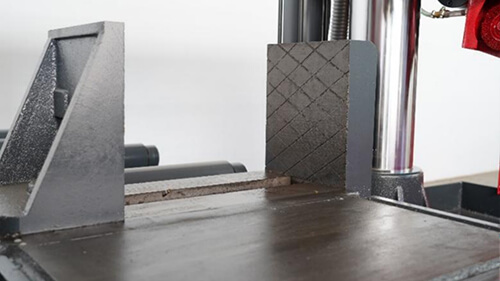

Work-piece Clamping

Hydraulic Vise

Blade Tension

Hydraulic

Material feed

Auto

Machine size(mm)

2520*2200*1750

Machine weight(kg)

2200

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

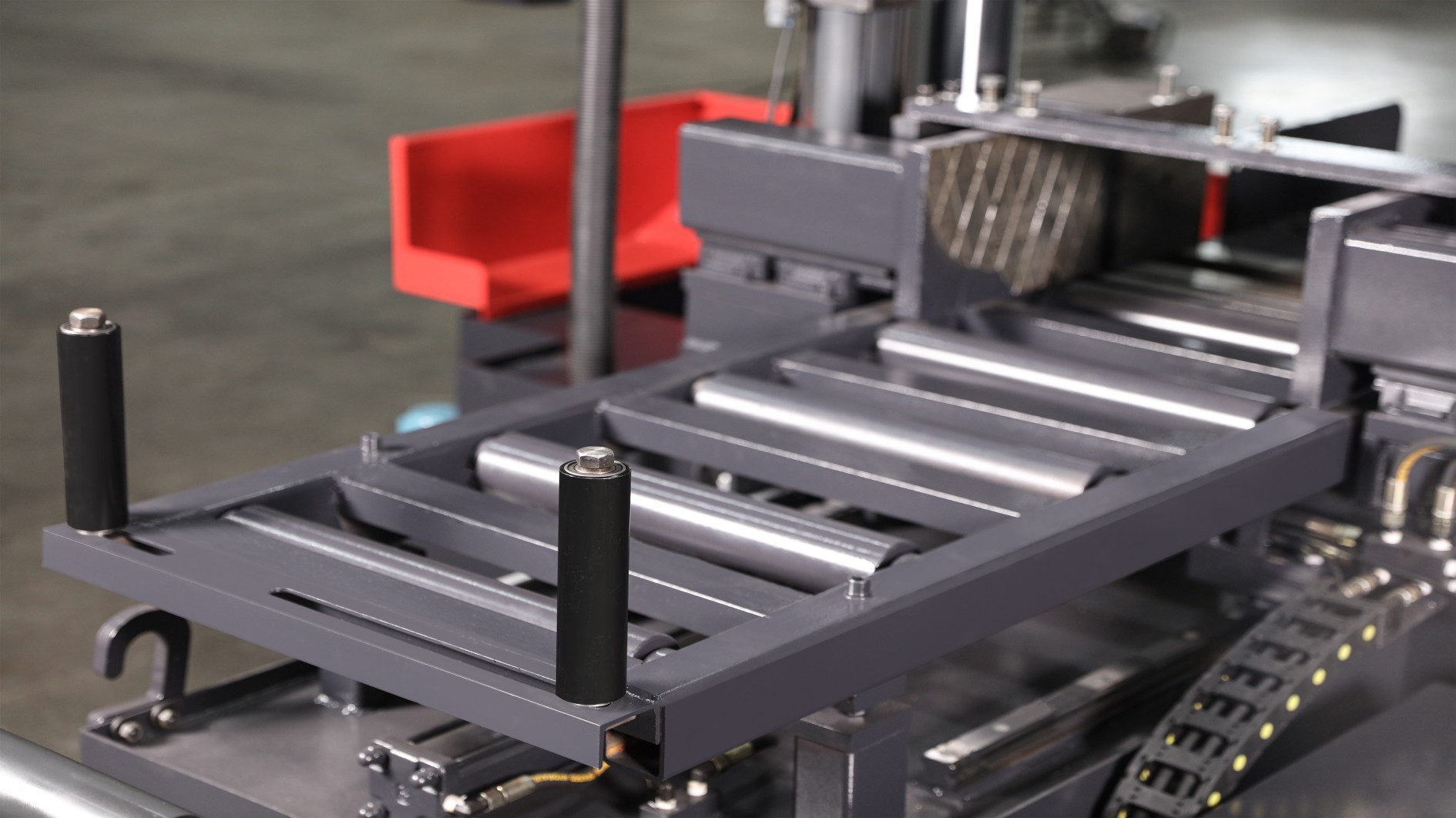

Out-feed with auxiliary plate table

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1.Roller table :

2.Band saw blade

3.Auto chip conveyor
