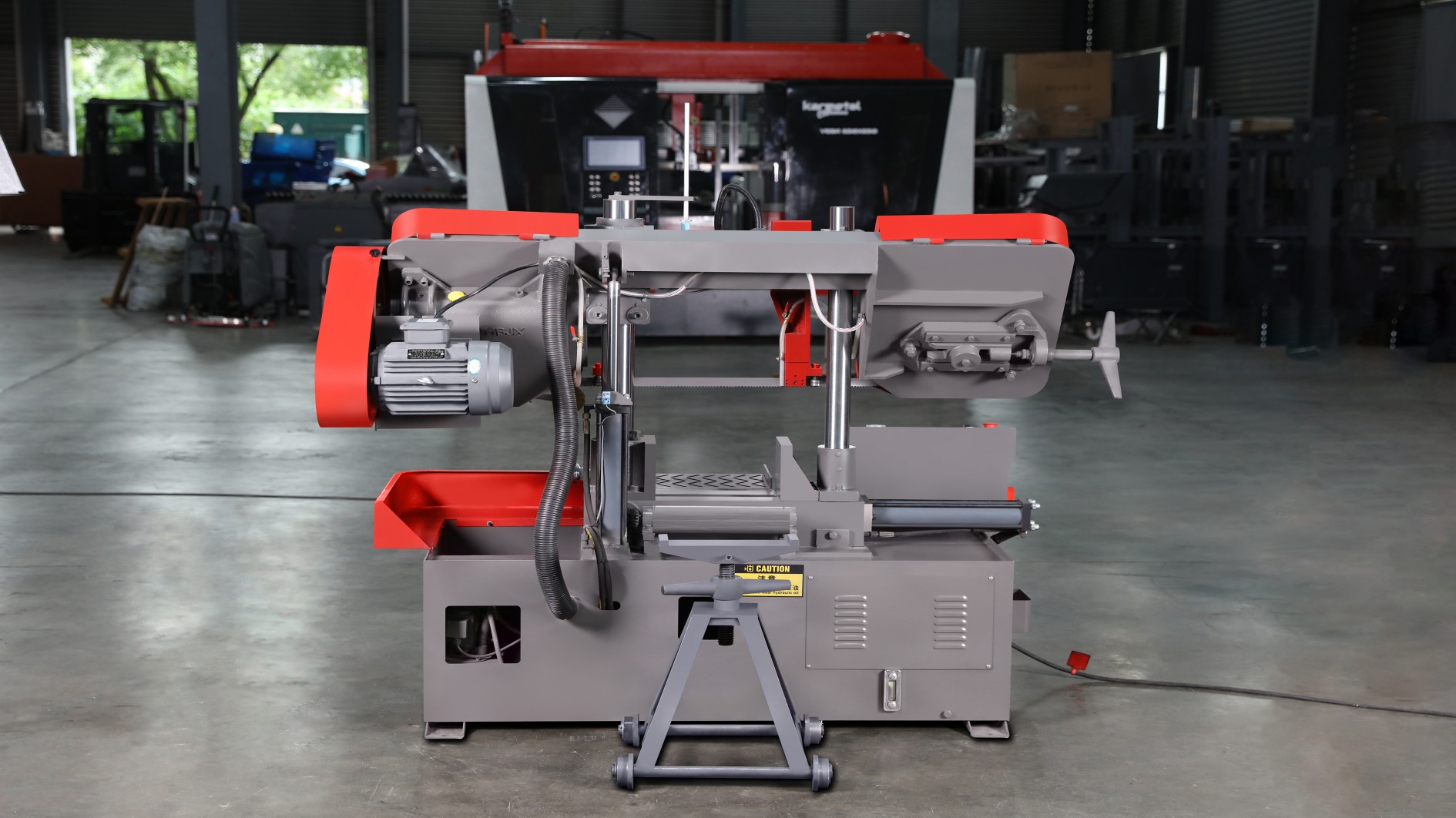

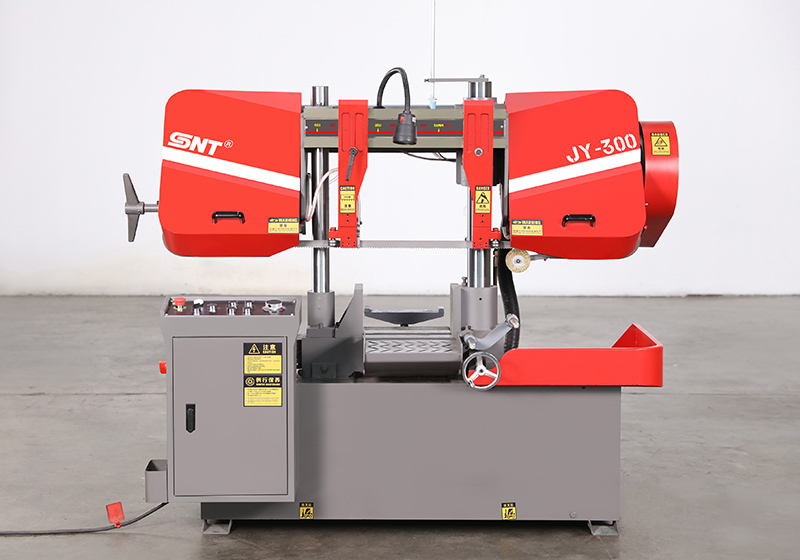

JY-300

Technical Data

Cutting capacity(mm)

300*300

Blade speed(m/min)

26/49/68

Blade size(mm)

27*0.9*3505

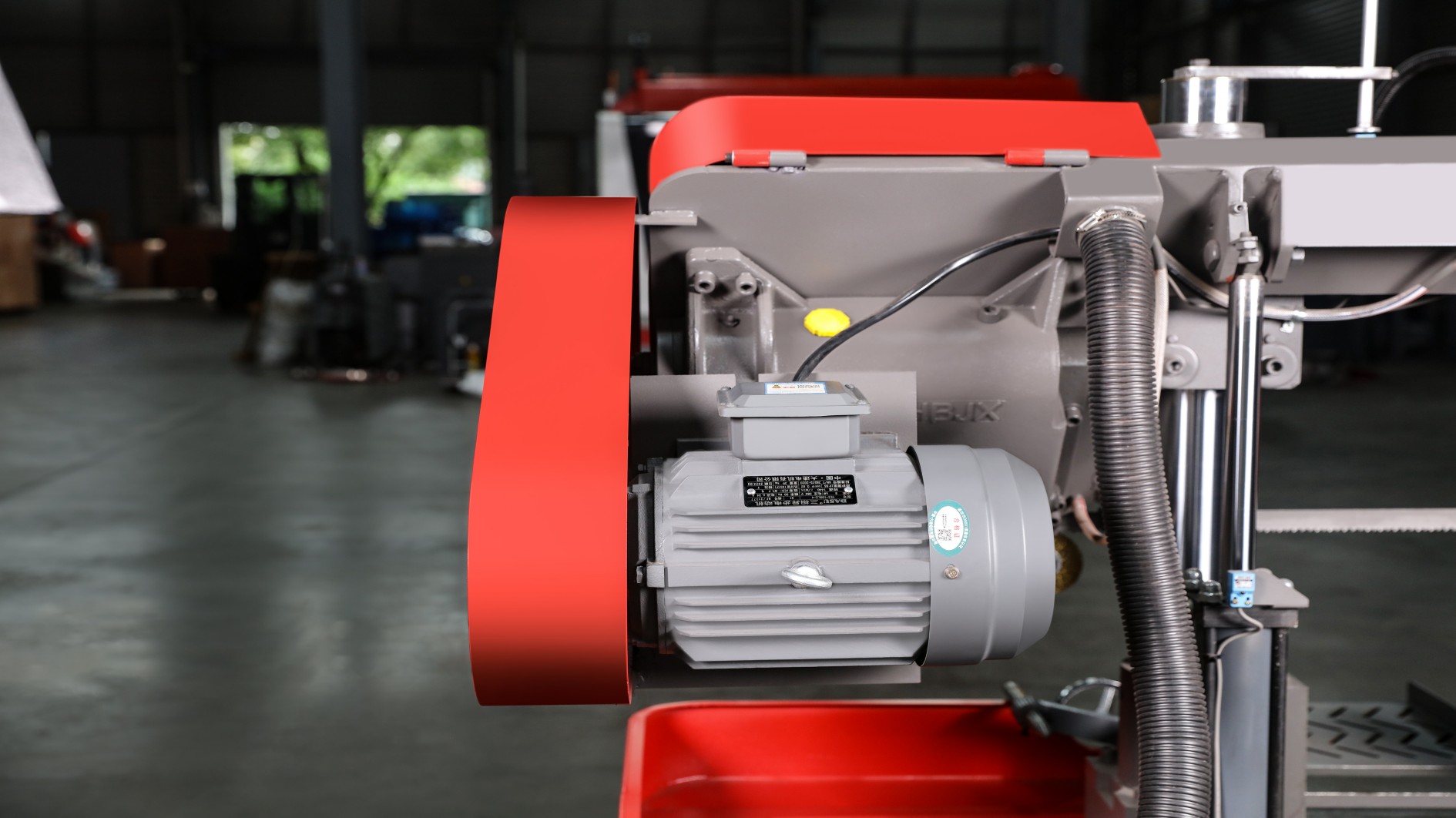

Main Motor(kw)

3

Hydraulic Motor(kw)

0.55

Cooling Motor(kw)

0.04

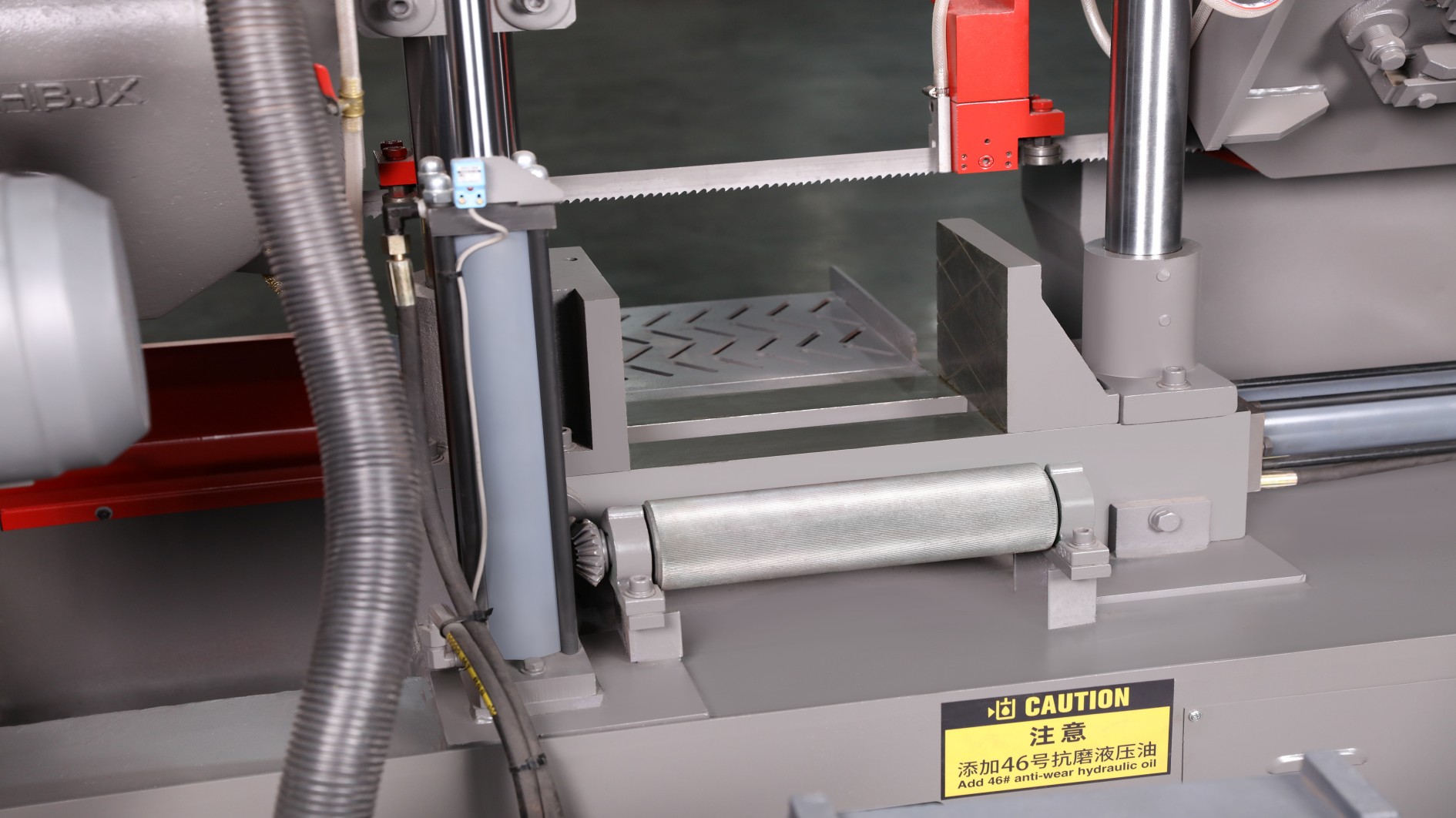

Work-piece Clamping

Hydraulic Vise

Blade Tension

manual

Material feed

manual

Machine size

1880*1050*1500mm

Machine weight

700kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1.Roller table :

2.Band saw blade
