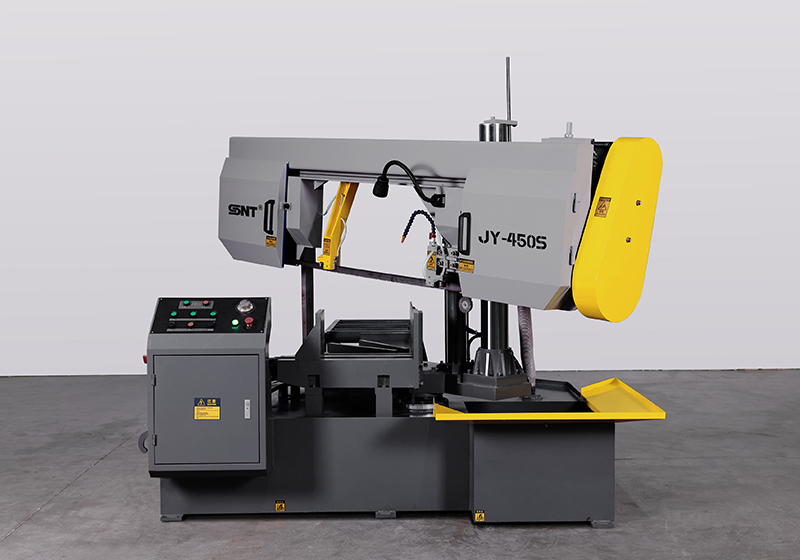

JY-450S

Technical Data

Cutting capacity(mm)

0°   450 for Round shape

      W500*H450 for square shape

45° W480*H450 for square shape

Blade speed(m/min)

23/43/62/70

Blade size(mm)

41*1.3*5850

Main Motor(kw)

4.0

Hydraulic Motor(kw)

0.75

Cooling Motor(kw)

0.09

Work-piece Clamping

Hydraulic Vise

Blade Tension

manual

Material feed

manual

Machine size

2860*1970*2030mm

Machine weight

2250kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1.Roller table :

2.Band saw blade
