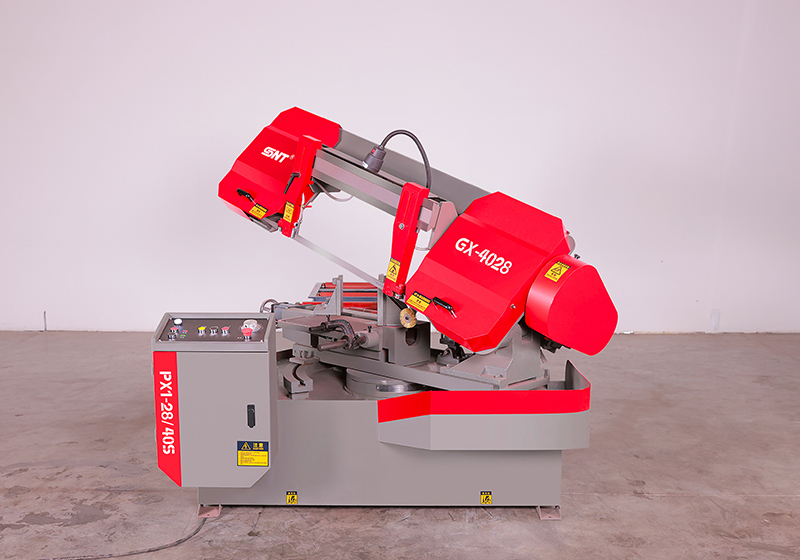

GX-4028X

Technical Data

Cutting capacity(mm)

0°   280 for Round shape

      W440*H280 for square shape

45° W270*H230 for square shape

Blade speed(m/min)

28/46/70

Blade size(mm)

34*1.1*3860

Main Motor(kw)

3.0

Hydraulic Motor(kw)

0.75

Cooling Motor(kw)

0.04

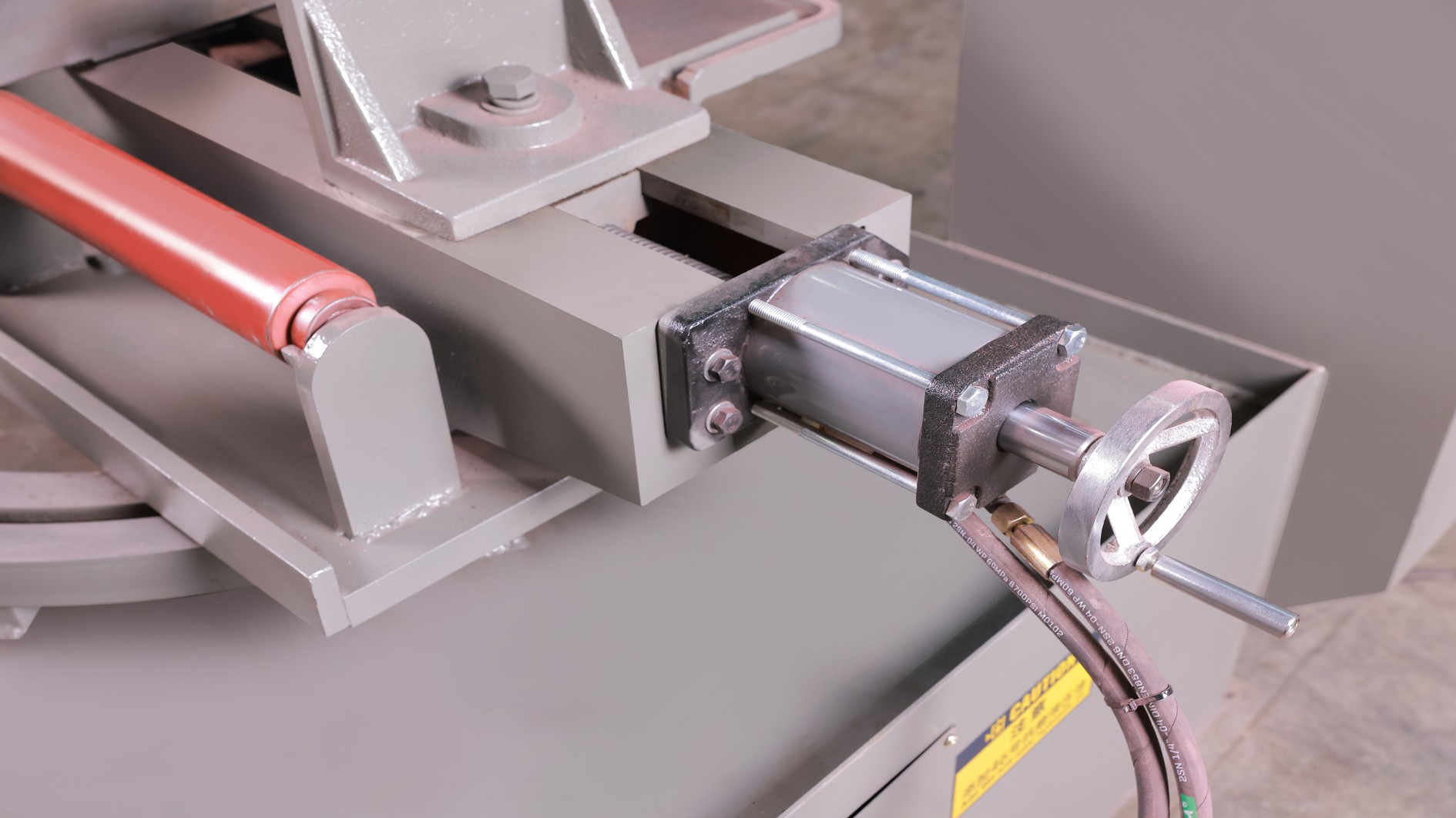

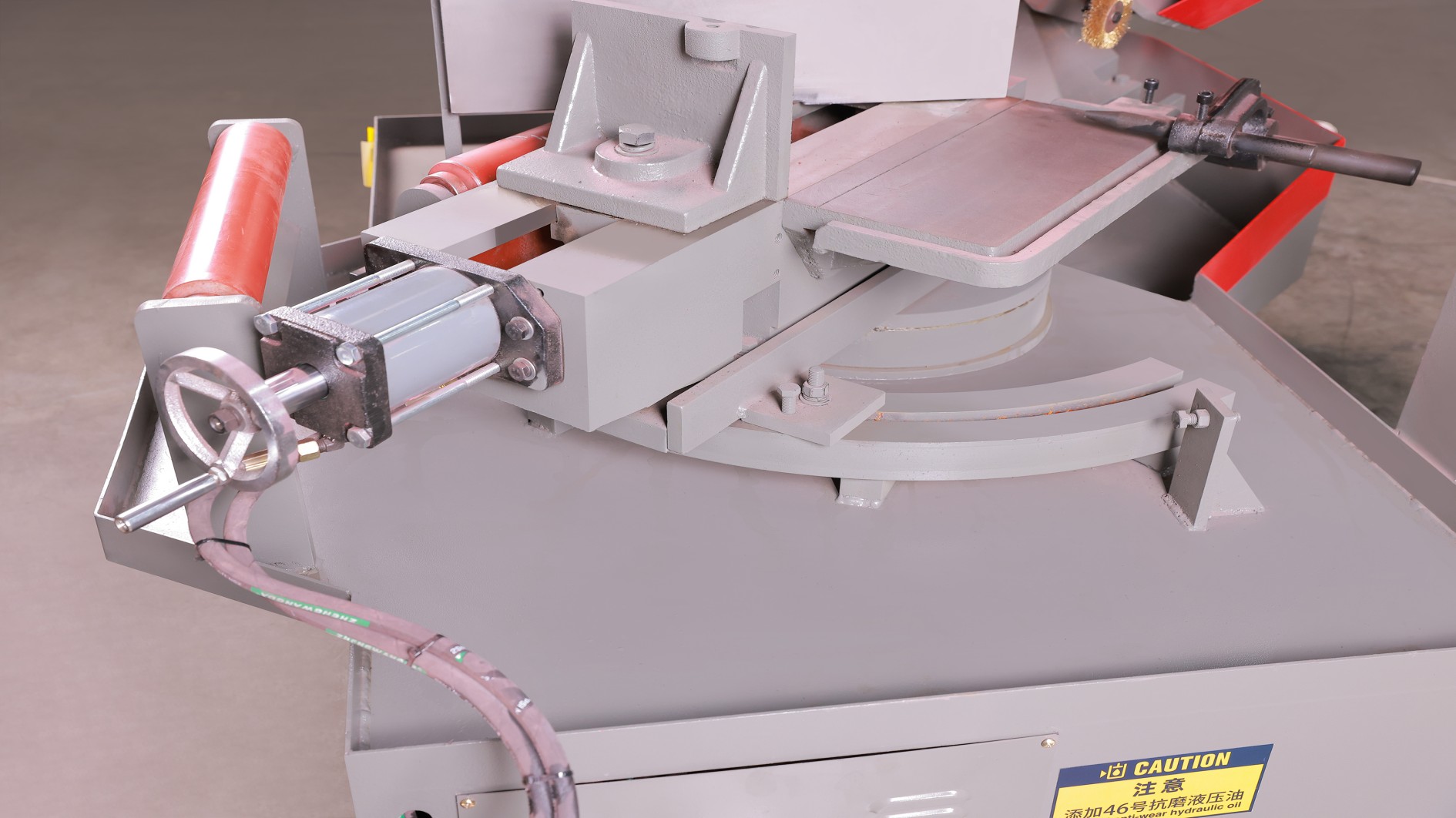

Work-piece Clamping

Hydraulic Vise

Blade Tension

manual

Material feed

manual

Machine size

2070*1470*1370mm

Machine weight

1100kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1.Roller table :

2.Band saw blade
