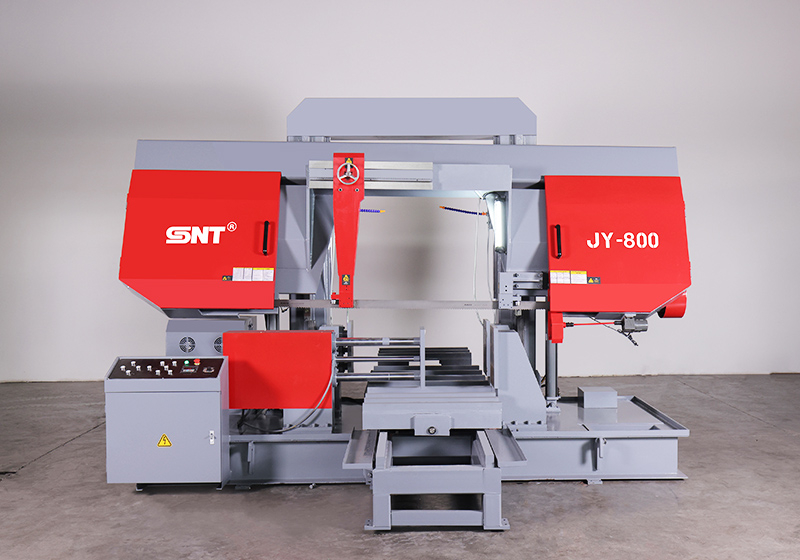

JY-800

Technical Data

Cutting capacity(mm)

W1000*H800

Blade speed(m/min)

10-70

Blade size(mm)

67*1.6*9100

Main Motor(kw)

11

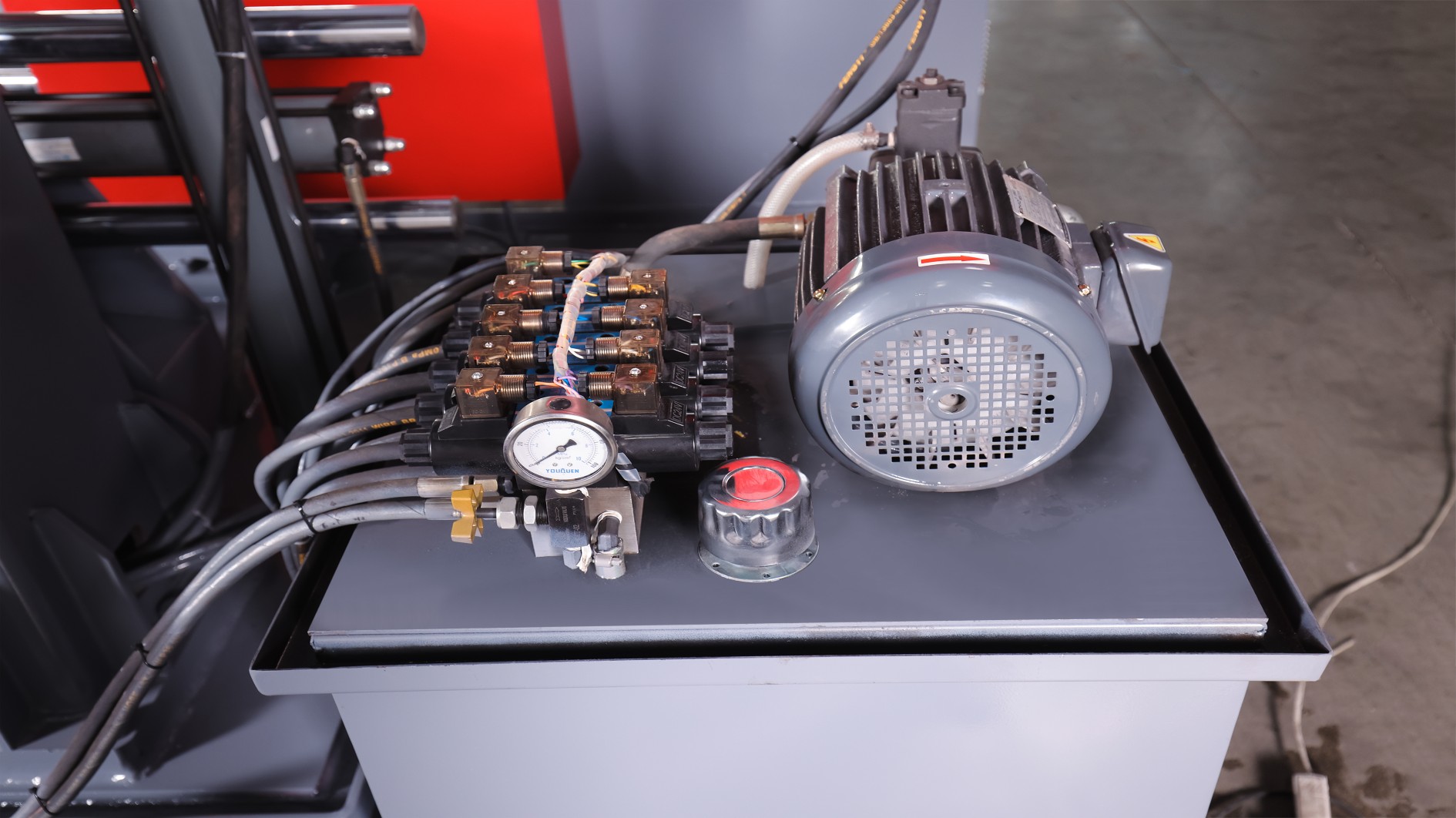

Hydraulic Motor(kw)

2.2

Work-piece Clamping

Hydraulic Vise

Blade Tension

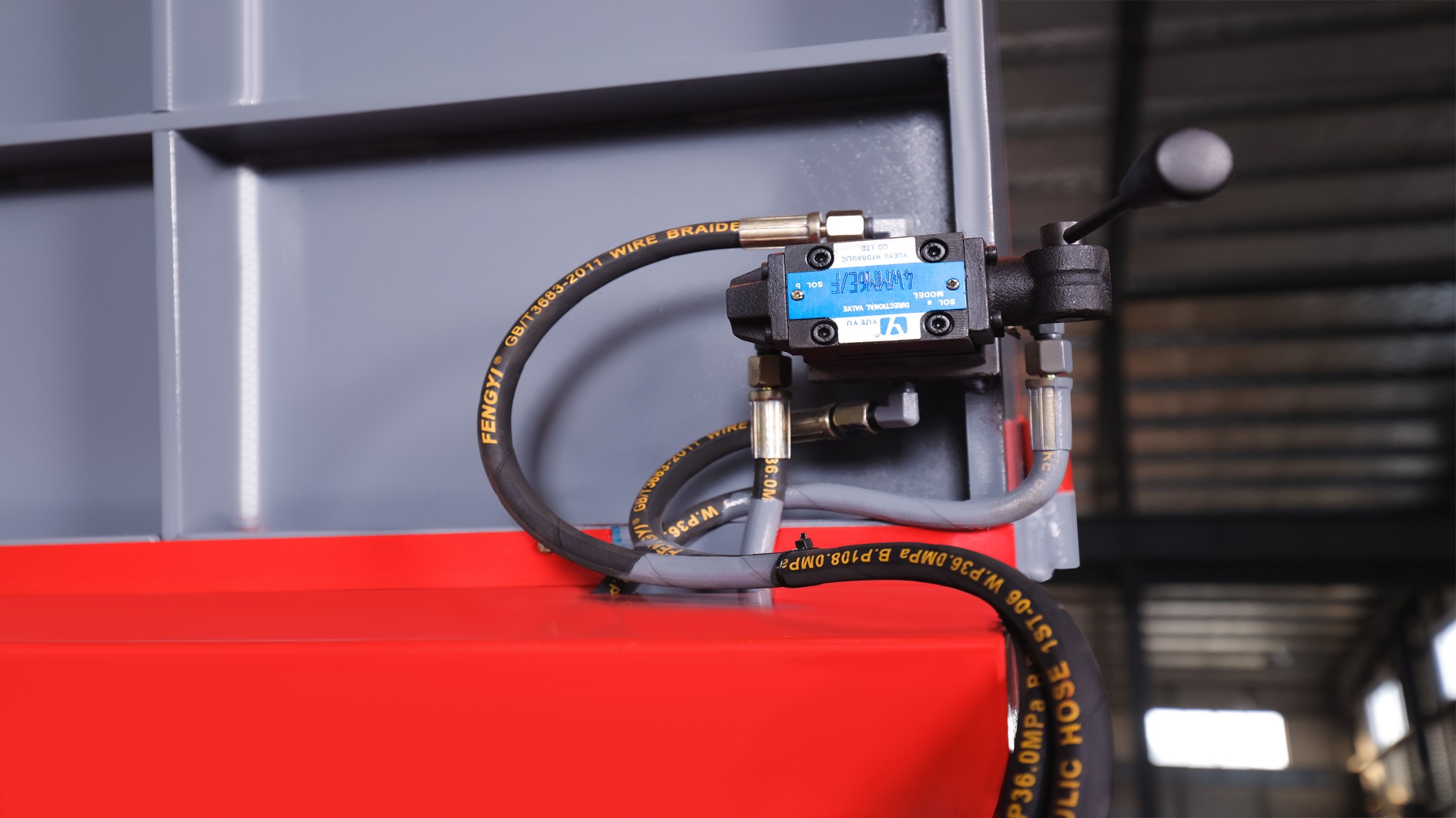

Hydraulic

Material feed

Manual

Machine size(mm)

4200*1950*2820

Roller table size(mm)

1960*900/500*900

Machine weight(kg)

7900

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

Option parts

1. Roller table :

2.Band saw blade

3.Auto chip conveyor
