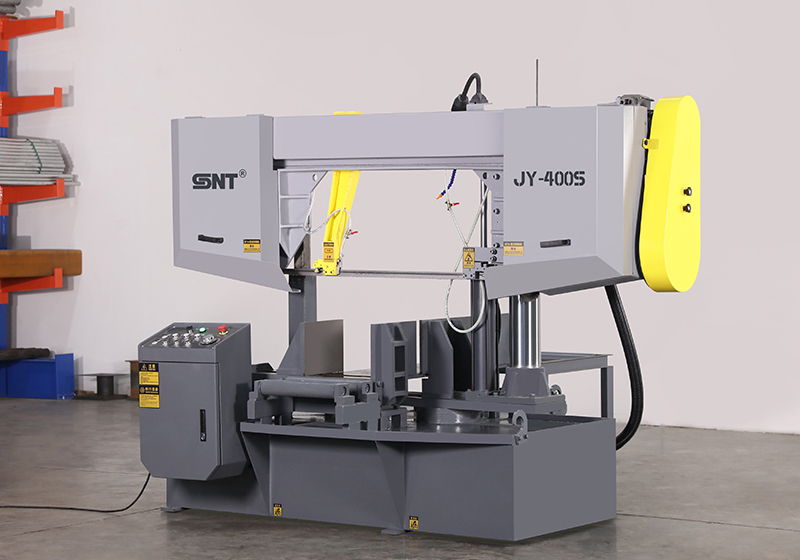

JY-400S

Technical Data

Cutting capacity(mm)

0°   400 for Round shape

      W510*H400 for square shape

45° W350*H400 for square shape

Blade speed(m/min)

33/48/60/84

Blade size(mm)

41*1.3*5330

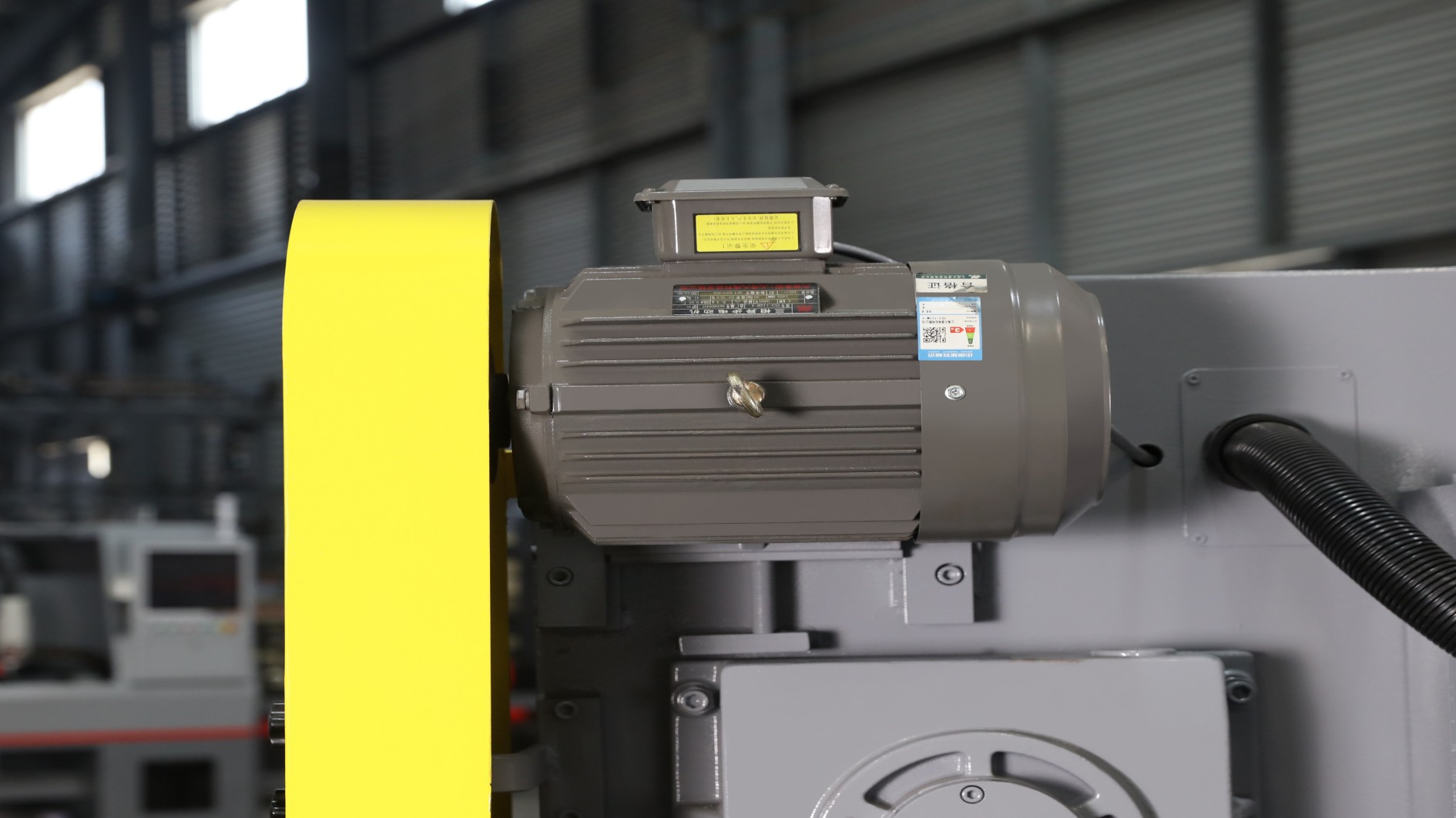

Main Motor(kw)

4.0

Hydraulic Motor(kw)

0.75

Cooling Motor(kw)

0.09

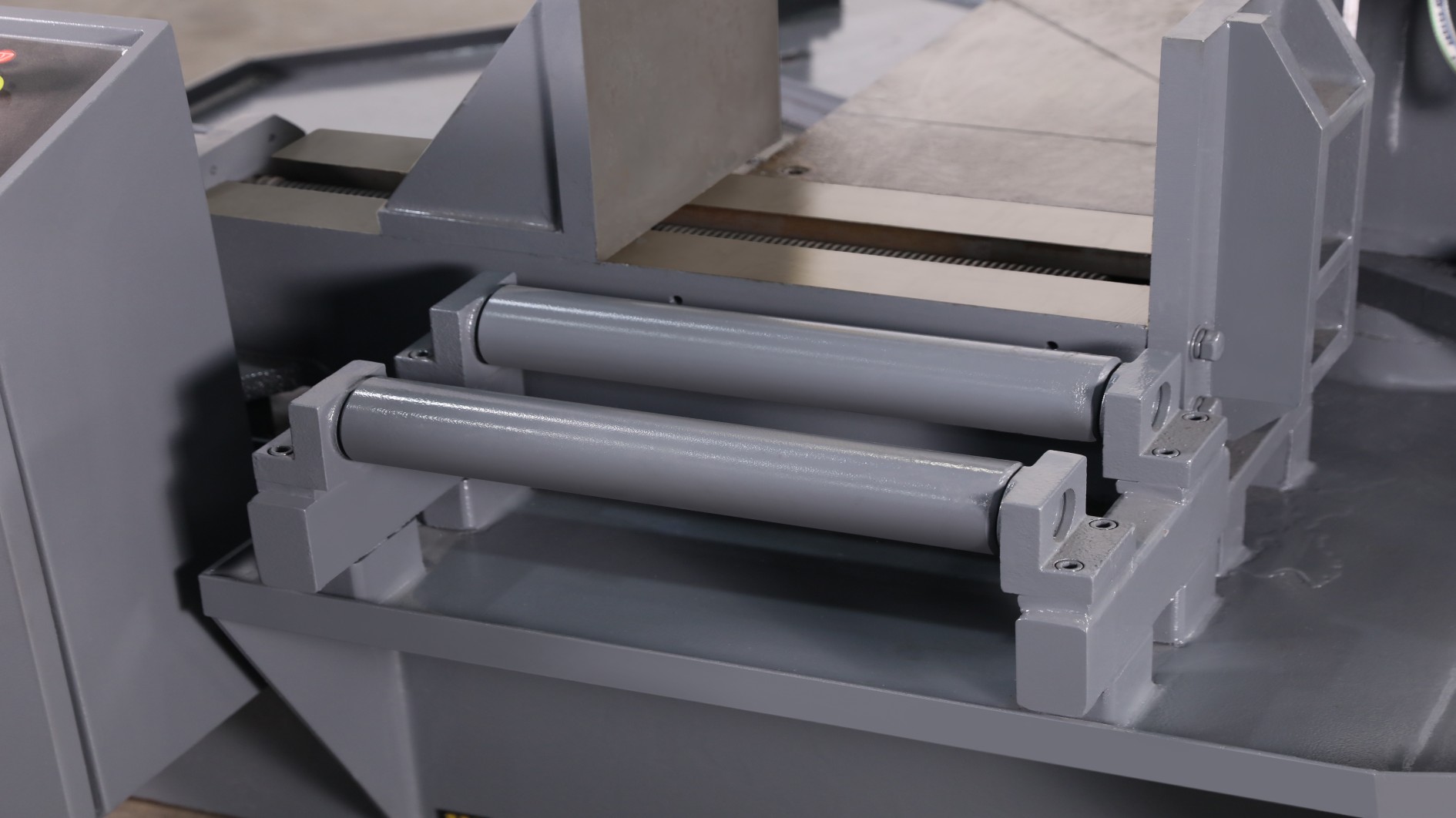

Work-piece Clamping

Hydraulic Vise

Blade Tension

manual

Material feed

manual

Machine size

2700*1750*1700mm

Machine weight

1600kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Option parts

1.Roller table :

2.Band saw blade
