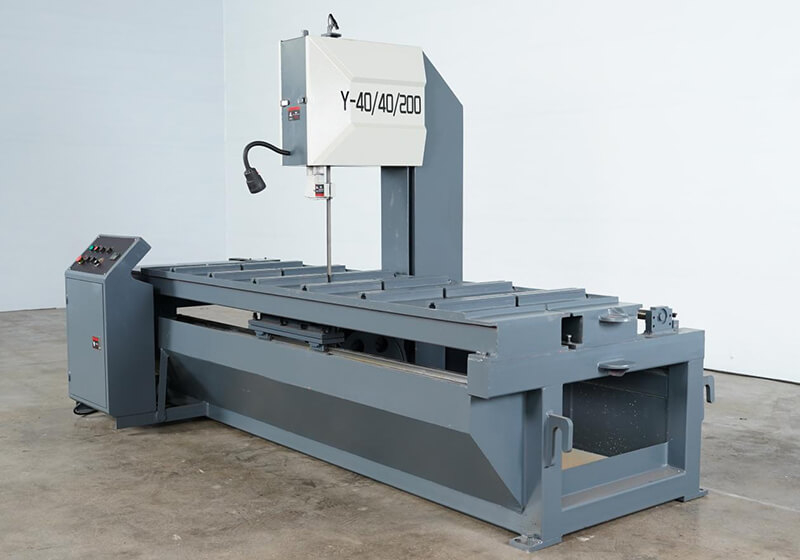

Y-40/40/200

Technical Data

Cutting capacity(mm)

Range 400mm

Throat deep 400mm

Stroke 2000mm

Blade speed(m/min)

20-70

Blade size(mm)

1.1×34×3920

Main Motor(kw)

4

Work-piece Clamping

Hydraulic Vise

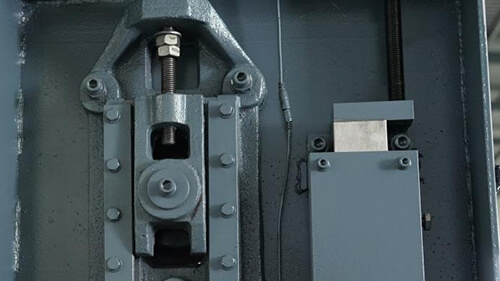

Blade Tension

manual

Material feed

manual

Machine size

3600×1600×2000

Machine weight

1800kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Unit price FOB NINGBO(USD):

Option parts

1.Hydraulic blade tension :

1m Roller table :

Band saw blade:

Inverter speed :

Auto chip conveyor :
