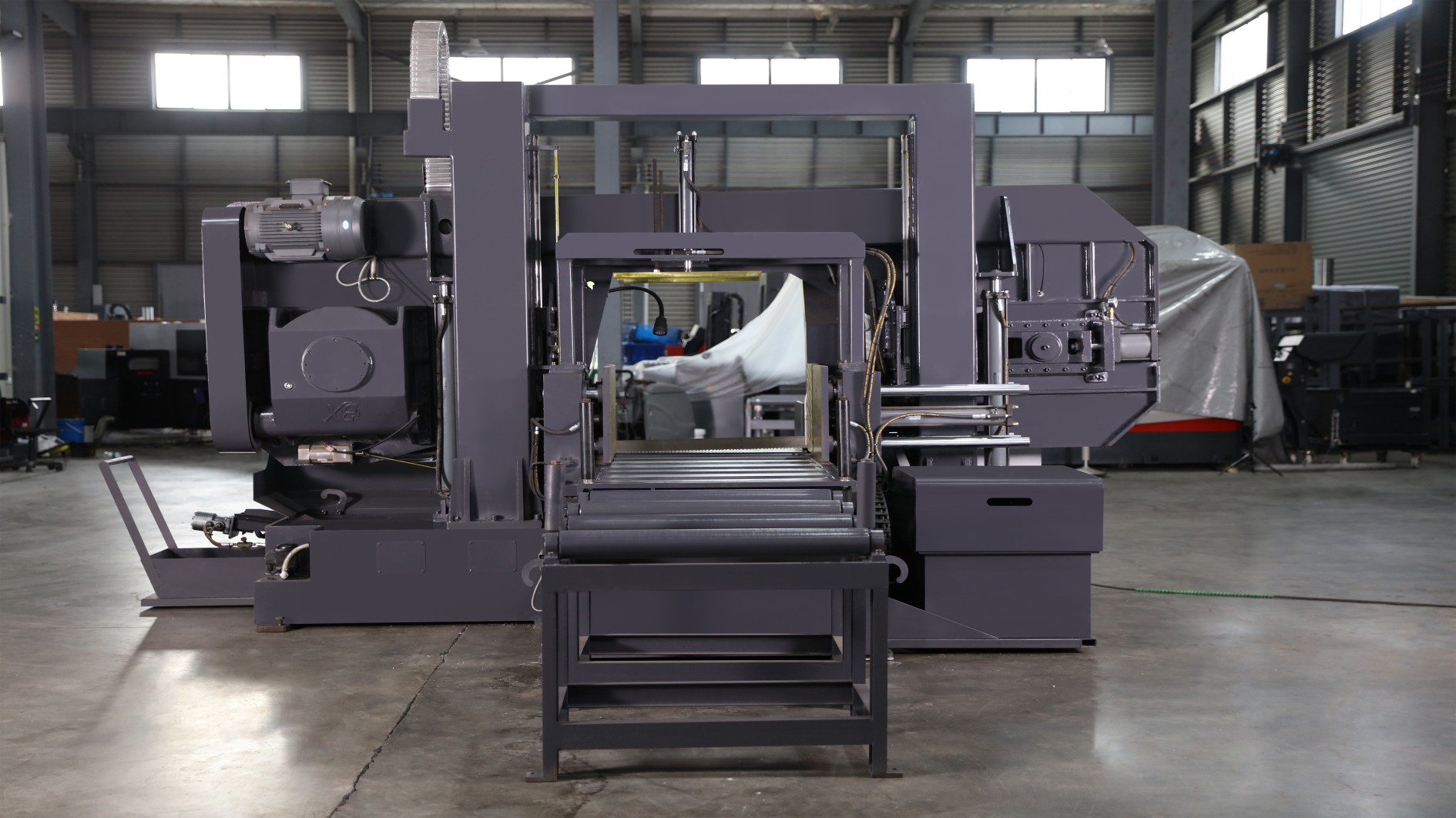

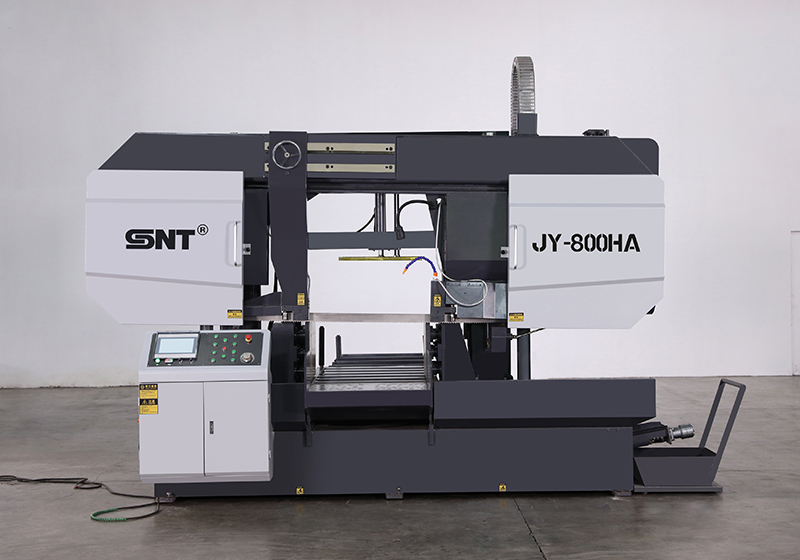

JY-800HA-R

Technical Data

Cutting capacity(mm)

800*800

Blade speed(m/min)

10-80 INVERTER SPEED

Blade size(mm)

67*1.6*8850

Main Motor(kw)

11

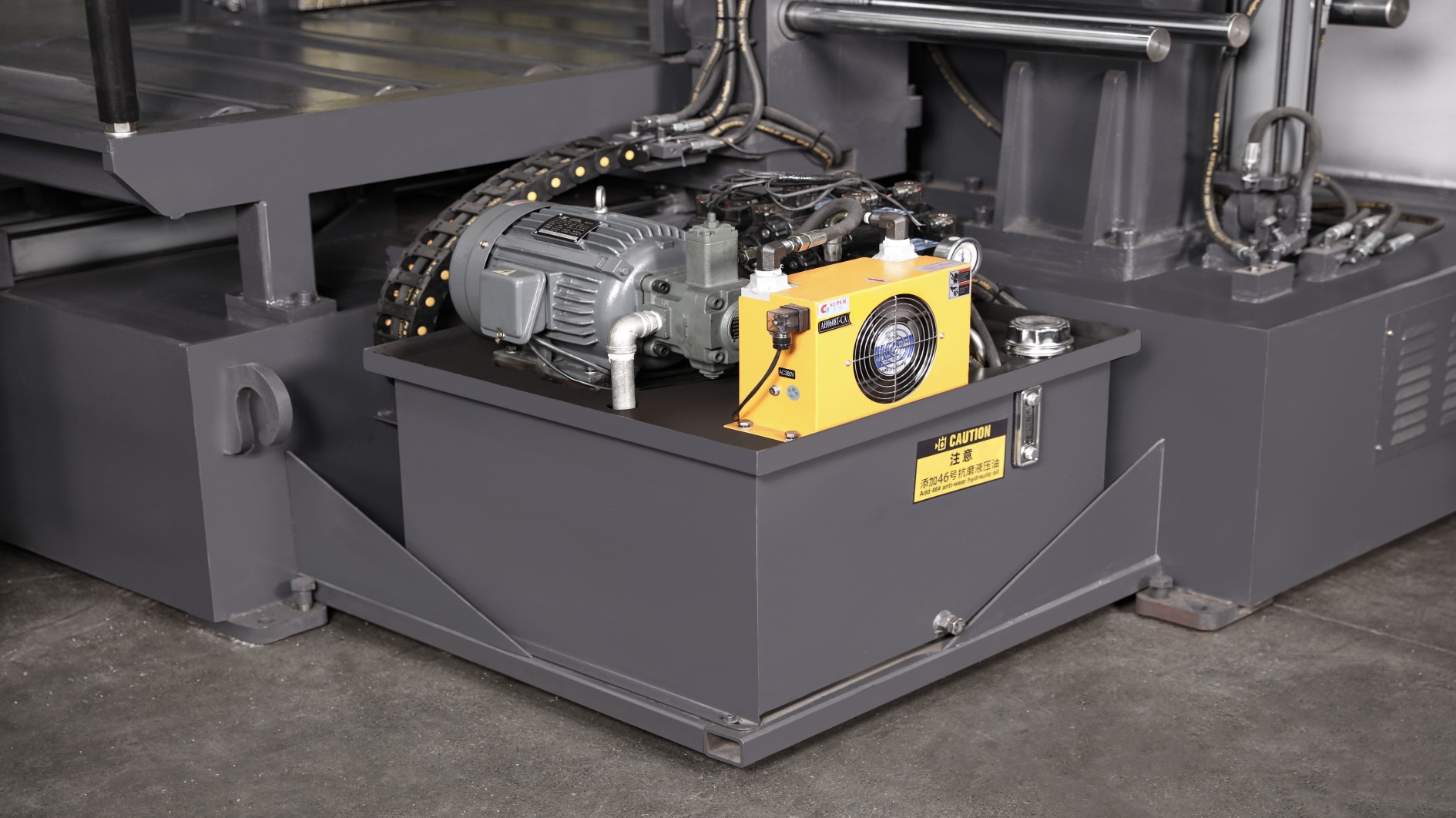

Hydraulic Motor(kw)

2.2

Cooling Motor(kw)

0.12

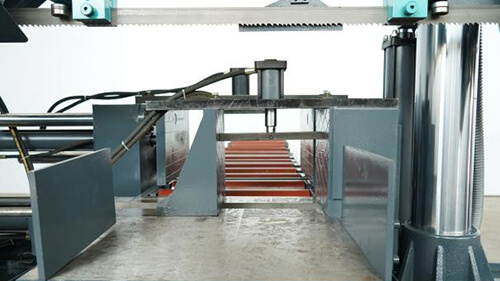

Work-piece Clamping

Hydraulic Vise

Blade Tension

Hydraulic

Material feed

automatic

Machine size

4250*2330*2900mm

Machine weight

8200kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

Option parts

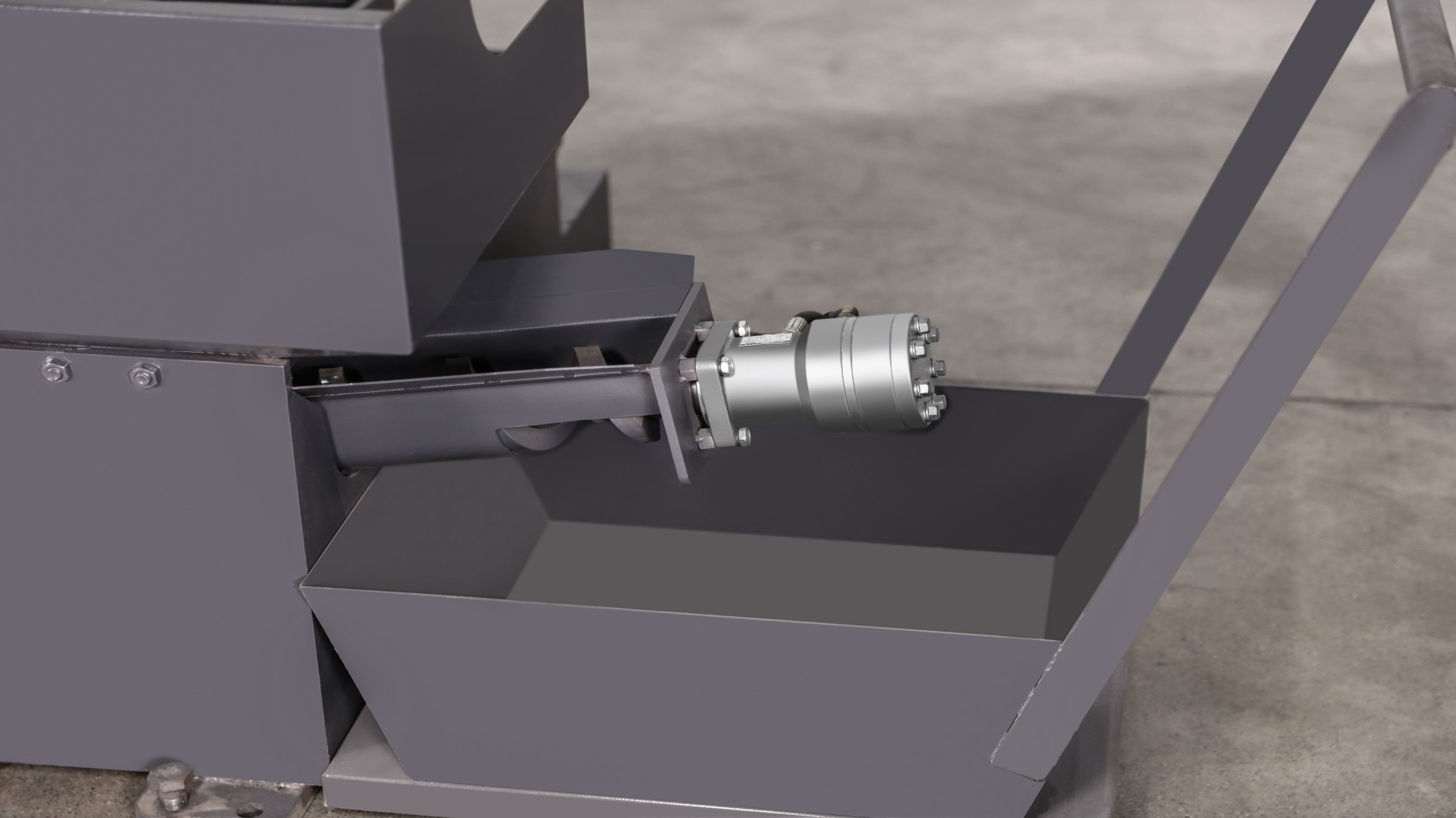

1.Auto chip conveyor

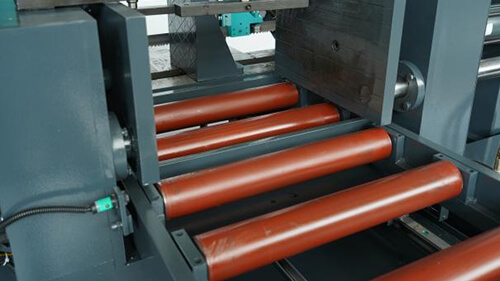

2.Roller table :

3.Band saw blade
