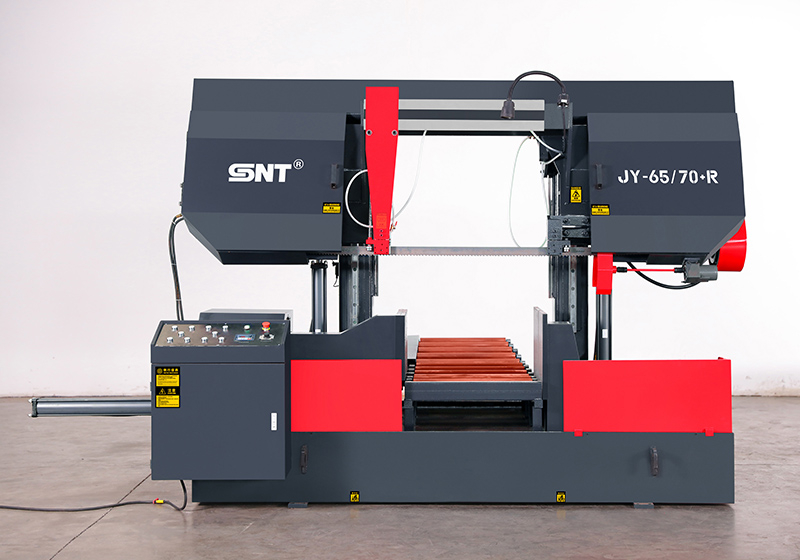

JY-65/70+R

Technical Data

Cutting capacity(mm)

W700*H650

Blade speed(m/min)

20-60

Blade size(mm)

54*1.6*6900

Main Motor(kw)

7.5

Hydraulic Motor(kw)

1.5

Work-piece Clamping

Hydraulic Vise

Blade Tension

Hydraulic

Material feed

Manual

Machine size(mm)

4100*1750*2350

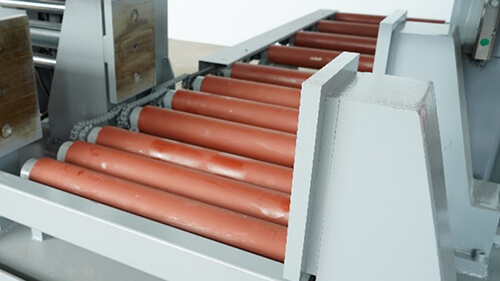

Roller table size(mm)

2400*870*650

Machine weight(kg)

4500

Standard Equipment

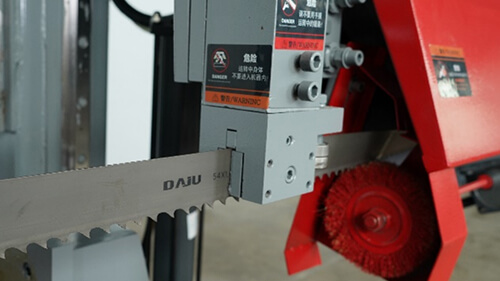

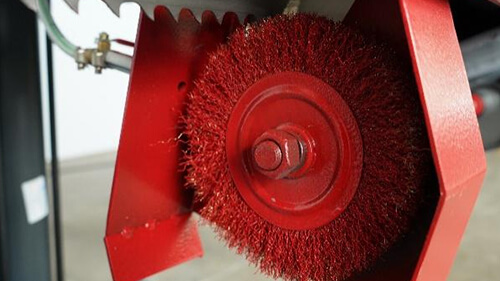

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

package

Steel and plywood

Option parts

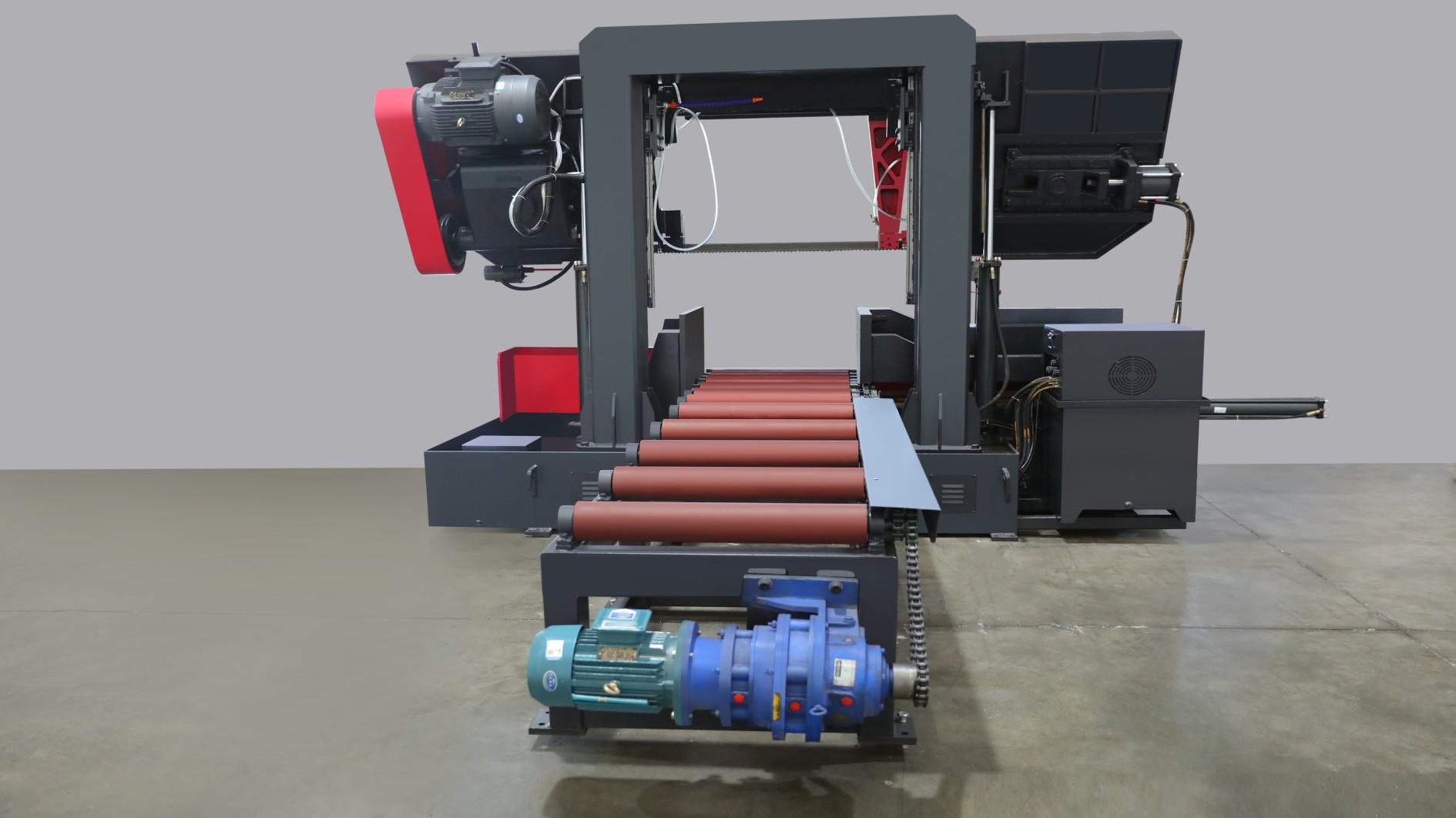

1. Roller table :

2.Band saw blade

3.Auto chip conveyor
