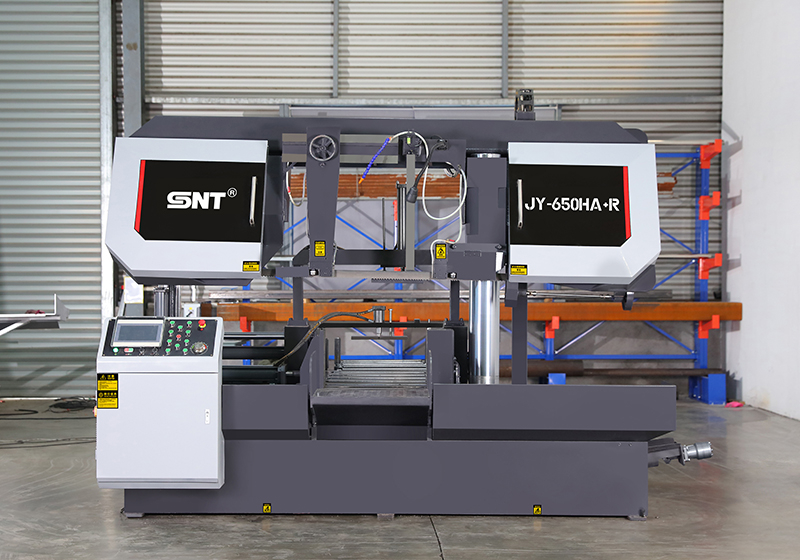

JY-650HA-R

Technical Data

Cutting capacity(mm)

650*650

Blade speed(m/min)

10-80 inverter speed

Blade size(mm)

54*1.6*7420

Main Motor(kw)

7.5

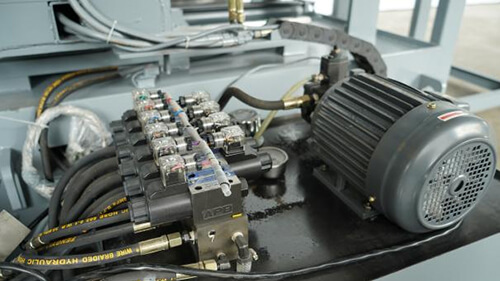

Hydraulic Motor(kw)

2.2

Cooling Motor(kw)

0.09

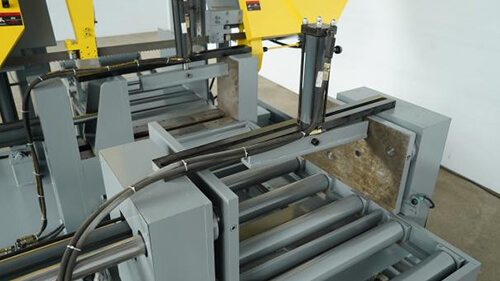

Work-piece Clamping

Hydraulic Vise

Blade Tension

Hydraulic

Material feed

automatic

Machine size

3660*2280*2350mm

Machine weight

4500kg

Standard Equipment

Blade cleaning brush

Power blade cleaning brush

Working light

YES

One piece of bi-metal saw blade

YES

One set of tools with tool box

YES

Operation manual

YES

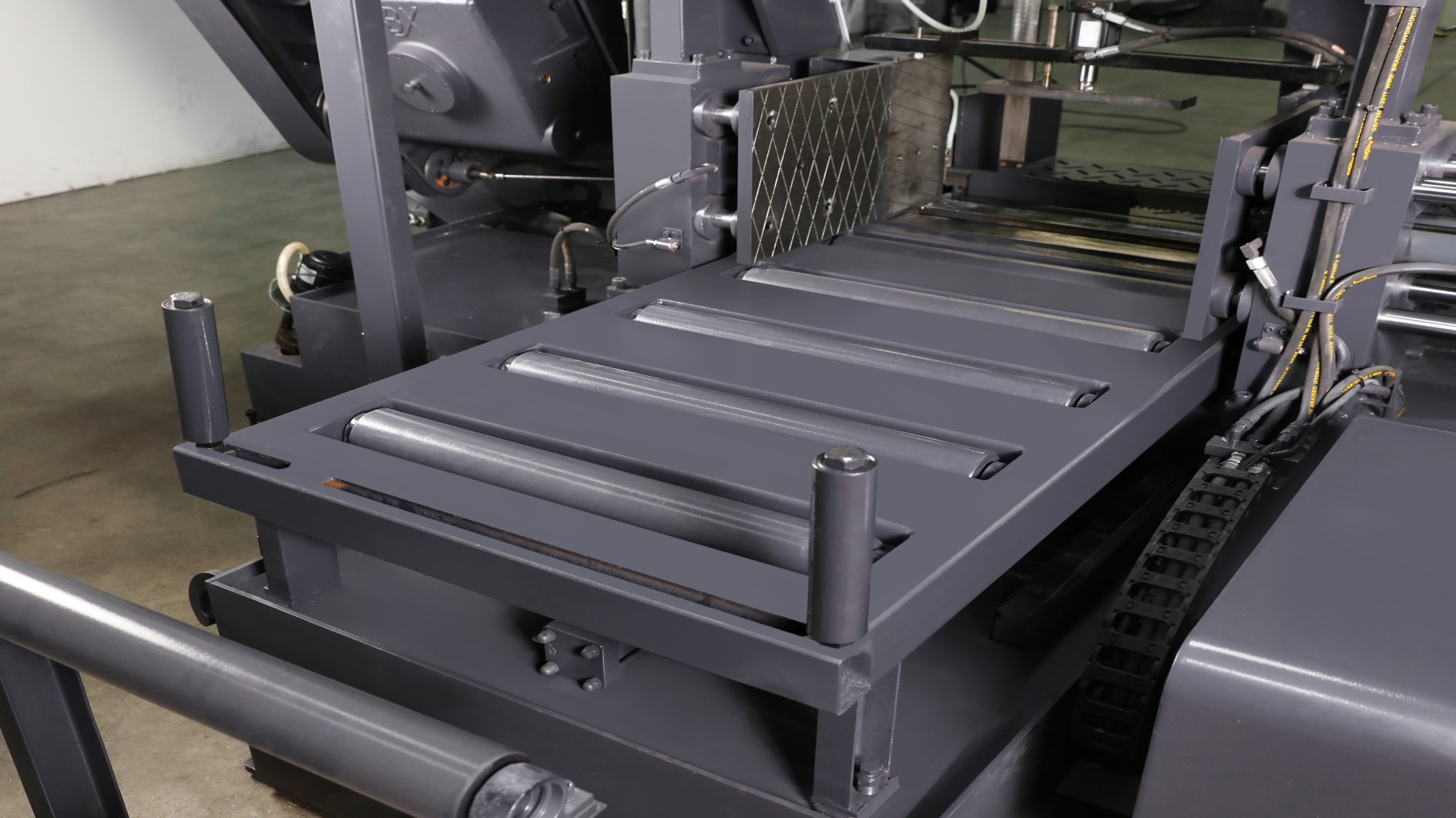

Out-feed with auxiliary plate table

YES

Length stopper

YES

Manual work height control

YES

Option parts

1.Roller table

2.Band saw blade

3.Inverter speed

4.Auto chip conveyor
