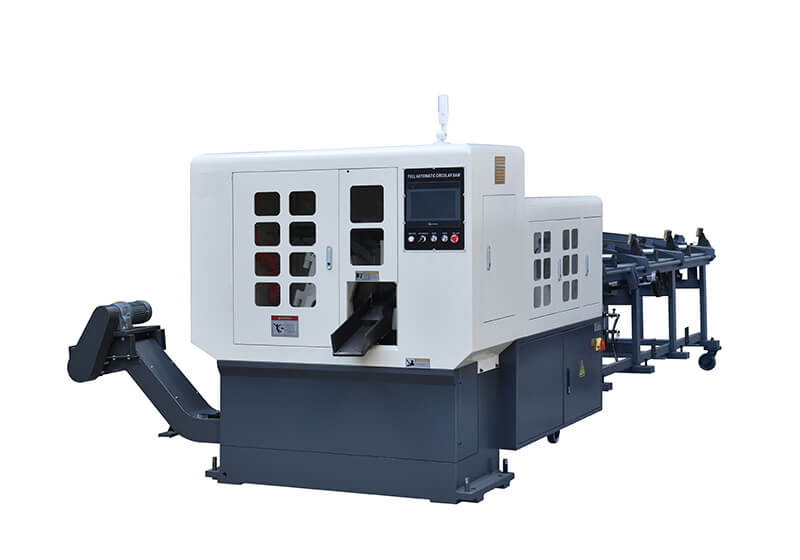

JY-70

Cut-off capacity

Round bar/tube

Φ10-70mm

Φ20-90mm

Φ20-100mm

Square bar/tube

10-55mm

20-80mm

20-70mm

Saw head spindle

TCT carbide tipped saw blade type

Φ285*T2.0mm

Φ315*T2.25mm

Φ360*T2.6mm

Saw blade rotation speed

22-200rpm

22-180rpm

20-170rpm

Motor

Spindle driving motor

7.5kw/4p

7.5kw/4p

11kw/4p

Hydraulic device

Work driving pressure

70kg/c㎡(7MPa)

70kg/c㎡(9MPa)

70kg/c㎡(9MPa)

Tank capacity

70L

90L

90L

Feeding length

10-800mm

10-800mm

10-800mm

Remant length(tails)

50mm + cutting length

55mm + cutting length

55mm + cutting length

Machine dimension-weight

Dimension(L*W*H)

7200*1850*1735mm

7200*1850*1750mm

7200*2000*1800mm

Weight(main body+shelf)

3500kgs

3700kgs

4100kgs

Suitable for sawing low hardness materials
